Water Coupler – Pneumec

Designed for quick replacement for die and mold! Rust resistant models having many variations.

For medium pressure and general applications

Valveless structure suits high viscosity fluids!
Various body materials, sizes and end configurations.
Braided hose connection types are newly added.
Valveless construction drastically saves pressure loss and achieves high flow rate.

Minimizing spillage during disconnection keeps workshops clean

Unique seal design reduces both liquid spillage and air ingress
Reliable zero friction valve
Push-to-connect design
One-hand easy operation
Wide variety of material options available
Automatic sheet of valve in both sockets and plugs prevent fluid spill out on disconnection

Light lever pull-down will connect the plug and socket without fail ready to flow liquid or gases.

This Cupla complies with diversified applications in liquid or gas transportation
End-face seal structure enables no bumps or hollows on the internet fluid passage, and ensures smooth fluid transportation.

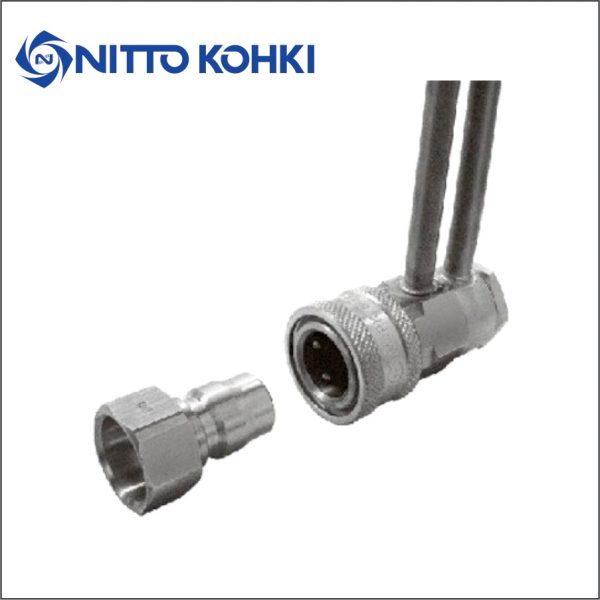

Couplings used in spot cooling system of die-casting dies Quick-connect design serves for improved efficiency in mold exchange or repair work.

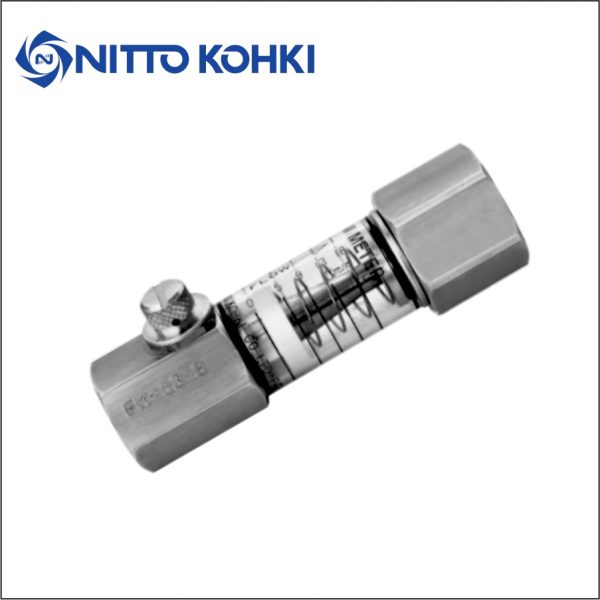

For even coolant flow rate and reproducing prescribed flow rate

Graduated scale enables easy visual check of coolant flow rate regardless of opertaor
Built in flow rate adjustment valve enables desired setting of mold conditions for each machine.
Easy resumptions of previously set molding conditions for each machines.
T2 side is equipped with rotary functions. Even after flexing the body on T1 side to the piping. additional screw tightening on T2 side is possible.
Maintenance is extremely simple.
