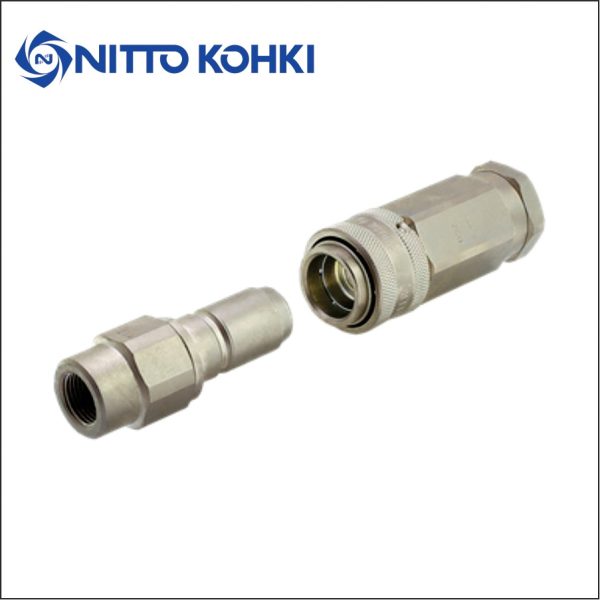

350 Coupler

For hydraulic pressures up to 34.5 Mpa {352 kgf/cm2}
  • Airless valve shut-off design greatly reduces air admixture!
  • Ideal for hydraulic lines with larger pressure fluctuations
  • Both socket and plug have built in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle.

Open E-Catalog

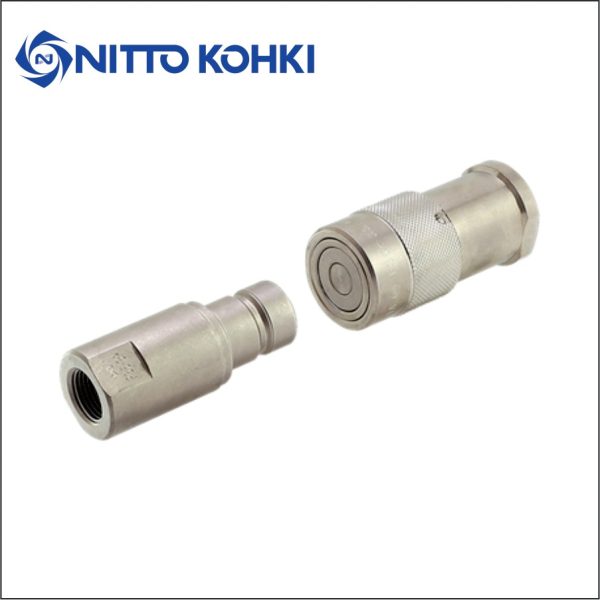

F35 Coupler

For hydraulic pressure up to 35.0 MPa with flat contact face
  • Flat contact face design makes it easy to clean dust and foreign matters adhered on the surface of coupling to prevent from entering inside and causing faulty operation
  • Minimizes air admixture during connection. l Push-to-connect operation.
  • Push-to-connect operation
  • Sleeve stopper mechanism is engaged by rotating sleeve after connection preventing accidental disconnection.
  • The special design reduces pressure loss considerably

Open E-Catalog

450 Coupler

Metal-touch valve system with superior durability! Sleeve stopper mechanism gives secure connection.
  • Cupla for higher working pressure up to 44.1 MPa
Features 1. For Hydraulic Pressures upto 450 Bar 2. Metal touch valve system with superior durability. 3. Sleeve stopper mechanism gives secure connection. 4. Both plug & socket have metal-touch automatic shut-off valves that prevent fluid spill out on disconnection.

Open E-Catalog

700R Coupler

High pressure Cupla for working pressures up to 68.6 MPa. Unique sleeve ring-lock system copes with vibration and impact when connected. Features 1. For Hydraulic Pressures upto 700 Bar 2. Unique Sleeve ring-lock system copes with vibration and impact when connected 3. Metal-touch valves use no rubber seal and thus ensure excellent durability 4. Both plug & socket have metal-touch automatic shut-off valves that prevent fluid spill out on disconnection.

Open E-Catalog

210 Coupler

Standard hydraulic Cuplas for general purposes with a working pressure up to 20.6 MPa. Low pressure loss, suitable for hydraulic equipment. Features 1. For Hydraulic Pressures upto 210 Bar 2. Structure is designed to reduce pressure loss to the lowest and is best for hydraulic applications that need big flow rates 3. Both plug & socket have built-in automatic shut-off vlaves that prevent fluid outflow when disconnected 4. Easy to handle

Open E-Catalog

Hsp Coupler

Special steel body is tough against vibration and impact! Male and female thread end configurations are available. Low pressure loss characteristic suits hydraulic equipment applications.
  • Quenched special steel body!
  • Powerful impact resistance, especially against impulses.
  • Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection. Easy to handle.
  • Optional HSP-DC Cuplas are available for die-casting machine applications with severe pressure variation.

Open E-Catalog

Purge Adapter

Residual Pressure Purge Adaptor for hydraulic lines
  • Couplings can be connected smoothly
  • Slim and neat piping with an in-line design

Open E-Catalog
